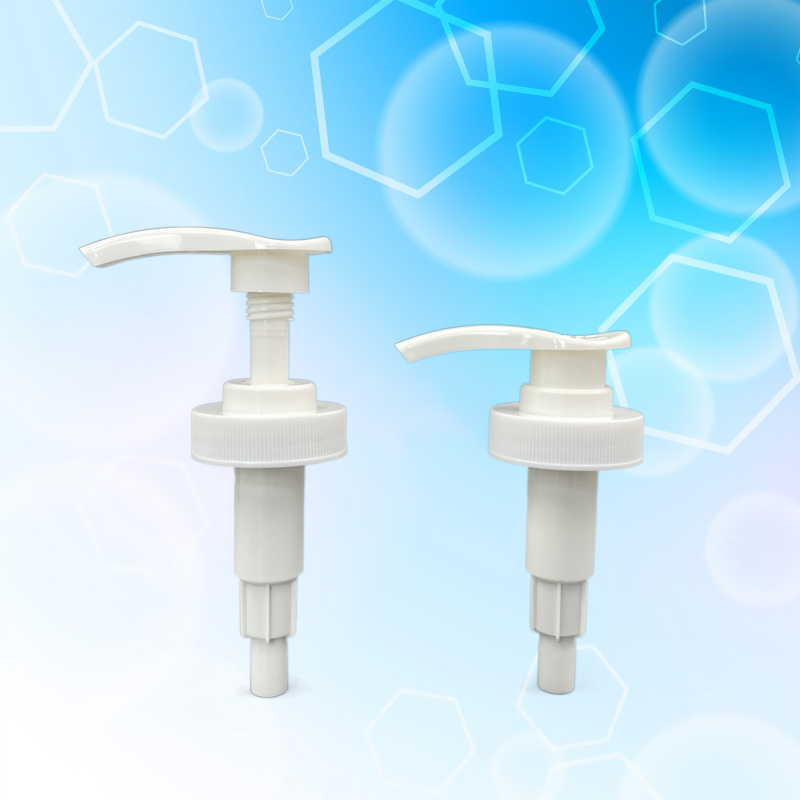

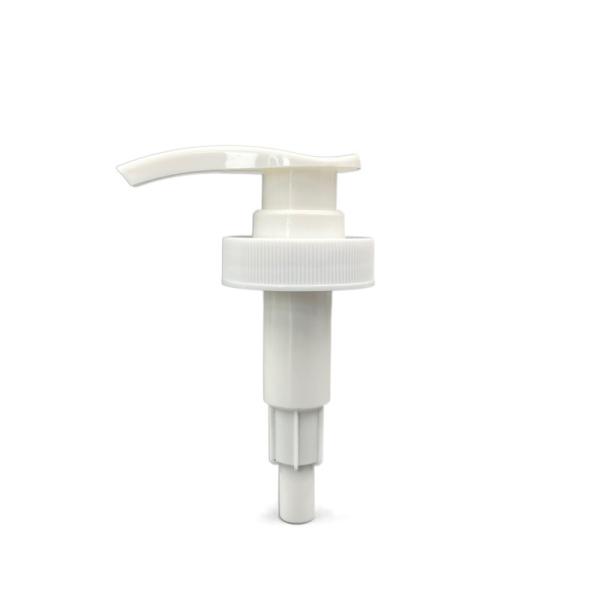

3.5 - 4.0 ML discharge rate Lotion pump 28/410 33/410 38/400 38/410
White color XY12-2
| Product Name | Lotion Dispenser pump |
| Item No. | XY12-2 |
| Material | PP |
| Closure size | 28/410, 33/410, 38/400, 38/410 |
| Color | Customized |
| Dosage | 3.5-4.0ml/ T |
| Delivery Time | 20days |
Features:
When we press the actuator for the first time, we press the
actuator through the connected stem to
drive the sub-stem to compress the spring together. In the process
of compressing spring, the outer
wall of the piston is rubbed with the inner cavity wall of the
body, which urges the piston to open the
discharge hole of the sub-stem. When the piston slides down, the
air in the body is discharged through
the opened sub-stem discharge hole. Press back and forth many times
to vent all the air in the housing.
After the air in the housing is discharged by pressing the actuator
through the stem, sub-stem, the piston
and the common compression spring, the actuator is loosened and the
spring moves upward because
of the loss of pressure, and the piston also moves down through the
inner wall of the friction body.
Close the discharge hole in the sub-stem. At this time, the liquid
storage cavity of the body forms a
vacuum suction state, the glass ball is sucked up, and the liquid
in the bottle is sucked into the liquid
storage cavity of the housing through the tube.
When the liquid in the bulk storage chamber is full, press the
actuator again and the liquid will flow out
directly from the nozzle through the outlet hole.
FAQ:
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: What is the lead time?
A: 20days after receiving the deposit .
Q: Do you have any MOQ limit?
A: Our MOQ is 20,000 pcs.
Q: Do you have any data uploading services?
A: Yes, we provide data drawings and make the new design according
to your need.
Q: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and
next we will produce some real samples for you.
